  Home


Copper Carbon Brushes






These are high current Copper Carbon Brushes. This is used in multiple numbers as per current requirement in many applications.



Rectifier 14 V 6000 A.M.P.S.







Electroplating Rectifiers






This is a low tension, natural air cooled transformer having rating from 5 VA-10 K VA. Sometimes these transformers have earth sealed between primary and secondary. They also have tappings on the input side to facilitate selection according to site voltage. Application : Control Panels Instrumentations.

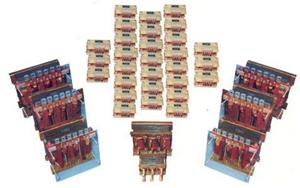

Iron Core Reactor 2300 A.M.P.S.







Polarity Reversing Switch






This is used by electroplating industry basically for degreasing purpose. Reverse voltages applied to the article to make it clean from foreign deposits. After this the regular process of electroplating is carried out.



Air Core Reactor 1500 A.M.P.S.







Furnace Transformers






As the name suggests, these are low voltage high current Transformers. They may be three phase to single phase Transformers or three phase to three phase transformers.

Application : Salt bath Furnace, Resistance Furnace.

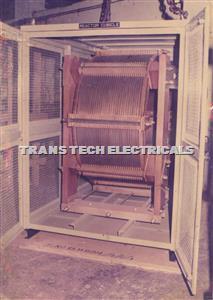

Air Core Reactor 3000 Amps

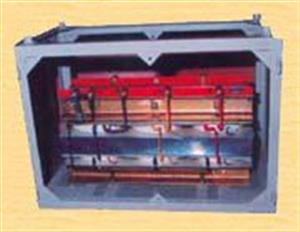

Ultra Isolation Transformers






These Transformers are single phase or three phase. They are specially designed for sensitive, critical loads. They isolate line voltage transients, spikes. It reduces common mode noise and transfer mode noise. This can be manufactured from 250 VA - 500 KVA.

Application : Computers and peripherals, Medical Instrumentations, Digital Communication system etc.

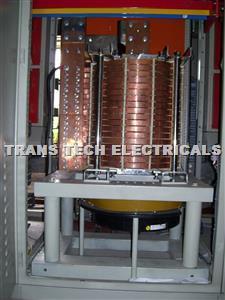

Air Core Reactor 10 000 Amps Forced Air Cooled







Auto Wound Transformer






This transformer has separate primary and secondary winding. if the input voltage is closer than perhaps, client may select Auto Wound Transformer. This is economical compared to Single Phase Double Wound Transformer.

Application : CNC machines, motors etc.



Water Cooled Reactor 2000 Amps







Three Phase To Single Phase Transformers






This transformer is used where there is a high single phase load. By using this Transformer, unbalance on the input side can be reduced.

Application : Bypass panels, Furnaces application...



D.C.C.T.






This is a direct current measuring C.T designed on the principle of tranductor. As compaired to shunt this gives stable reading over a period of many years. It is preffered to have D.C.C.T beyond 1000 Ampere D.C. current.

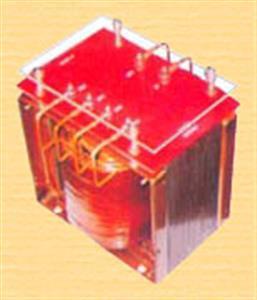

Control Transformer






This is a low tension, natural air cooled transformer having rating from 5 VA-10 K VA. Sometimes these transformers have earth sealed between primary and secondary. They also have tappings on the input side to facilitate selection according to site voltage.

Application : Control Panels Instrumentations.



Air Core Reactors






(A.C./D.C. Single Phase/ Three Phase Air Core)

Air Core Reactors are used where constant value of inductance is absolutely required. High Current air core reactors are used with non magnetic materials. As per the requirement of the client this can be manufactured in Aluminium or Copper. Application : Communication reactors, Reactors for slip power recovery system Where compactness is necessary and saturation is no problem to a certain limit. one can go for Iron Core Reactors. This can be manufactured upto 600 Hz for Application : Battery chargers, Special Purpose Electroplating Rectifier, Thyristorised equipment, A.C. Drives etc



Iron Core Reactors






Features of Iron Core Reactors :

High quality materias :

  • * Core made of grain oriented cold rolled electrical steel.
  • * Windings made of double enamelled copper wire Temperature class H/180° C.
  • * Insulation made of fibre glass base cloth etc, temperature class F 155° C or Npmex 410 aramid paper, temperature class F/155° C
  • * Standard dip varnish coating or vacuum and pressure impregnation (VPI) available
  • * Safe construction low combustion capacity

High frequency line reactors are used to attenuate harmonic Distortion and interference spikes coming from the Electrical System or the load, as well as limit starting current
